Edge Cutting Device

The edge cutting device is used for precisely cutting coil materials into fixed lengths. An optional synchronized cutting system can be equipped to produce products that require pattern matching synchronization.

Main Structure of Edge Cutting Device :

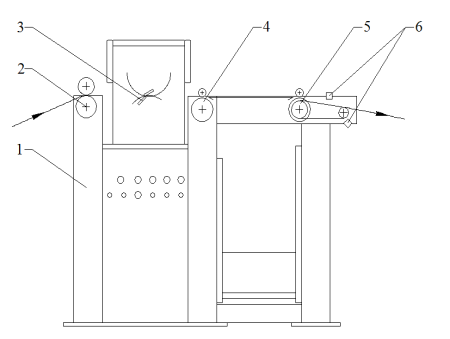

The edge cutting device consists of the frame, feeding roller, cutter, discharge roller, reduction belt, electrostatic eliminator/counting system, and power system. Based on the production line speed, it is available in flail knife and rotary knife types.

• 1—Frame

• 2—Feeding roller

• 3—Cutter

• 4—Discharge roller

• 5—Reduction belt

• 6—Electrostatic eliminator, counting system

• 7—Power system

Parameters of Edge Cutting Device:

• Paper width

• Paper working speed

Working Principle:The encoder tracks the production line speed, and precise cutting is achieved using either the flail cutting or rotary cutting method, ensuring clean trimming and accurate fixed lengths.

Edge Cutting Device Features:

• Uses an encoder + servo control for deformation-free cutting

• High cutting precision with stable length control

• Stable operation with low failure rate

• Blade material is wear-resistant, offering a long service life

• Automated control for simple operation
