Aluminum Oxide Glue Coating Machine

The coating machine applies a precise amount of adhesive to the top and bottom surfaces of the coil material, significantly affecting the appearance quality of the product. This unit is optional.

Main Structure of coating machine

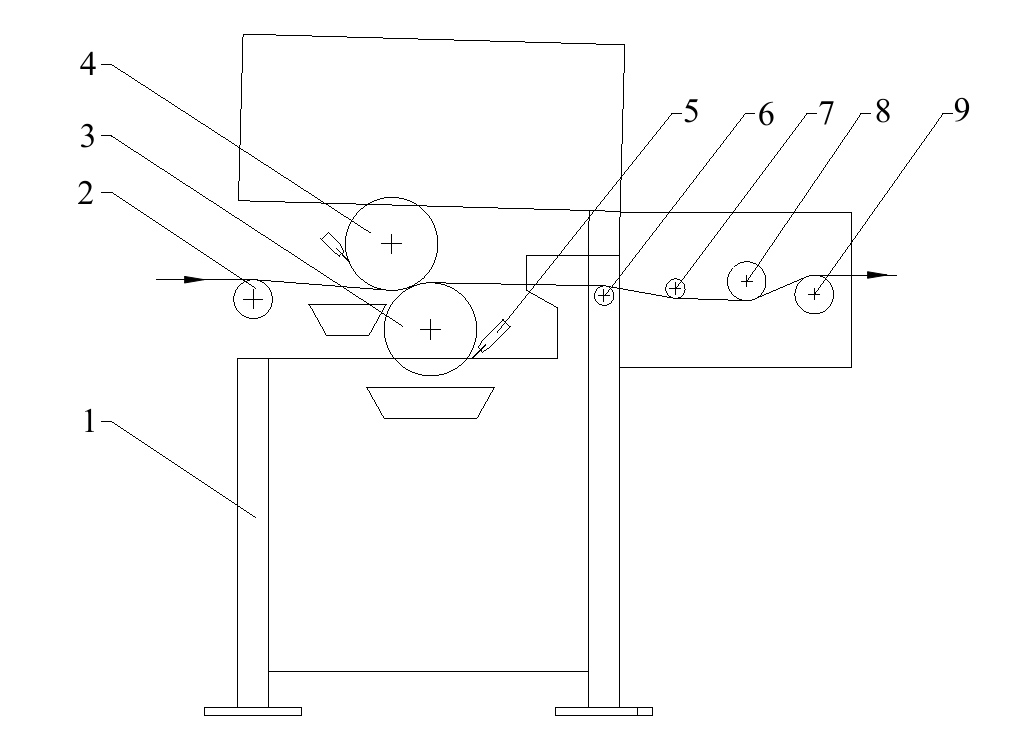

The coating machine consists of the frame, deflection roller, lower coating roller, upper coating roller, doctor blade, upper and lower threaded rollers, and upper and lower leveling rollers.

• 1—Frame

• 2—Deflection roller

• 3—Lower coating roller

• 4—Upper coating roller

• 5—Doctor blade

• 6—Lower threaded roller

• 7—Upper threaded roller

• 8—Upper leveling roller

• 9—Lower leveling roller

Main Technical Parameters of Coating Machine:

• Coating roller mesh count

• Paper width

• Threaded roller diameter

Working Principle:

The deflection roller located at the entrance of the coating machine first corrects the orientation of the entering coil material. The amount of adhesive applied can be fine-tuned by adjusting the rotational speed of the upper and lower coating rollers.

The coating rollers are engraved rollers that rotate in opposition to the coil surface during operation. They control both the amount of adhesive applied and the uniformity of its distribution on the coil material.

The Features of Coating Machine:

• Precise control of coating amount

• Excellent coating uniformity

• Wall panel design for stable operation

• Easy to clean and maintain

• High automation with user-friendly operation
