Stacking System

The stacking system is used for stacking finished paper to ensure continuous operation of the production line. Different solutions are designed based on factors such as the layout of the plant, the production process, the level of operators, and their operational habits.

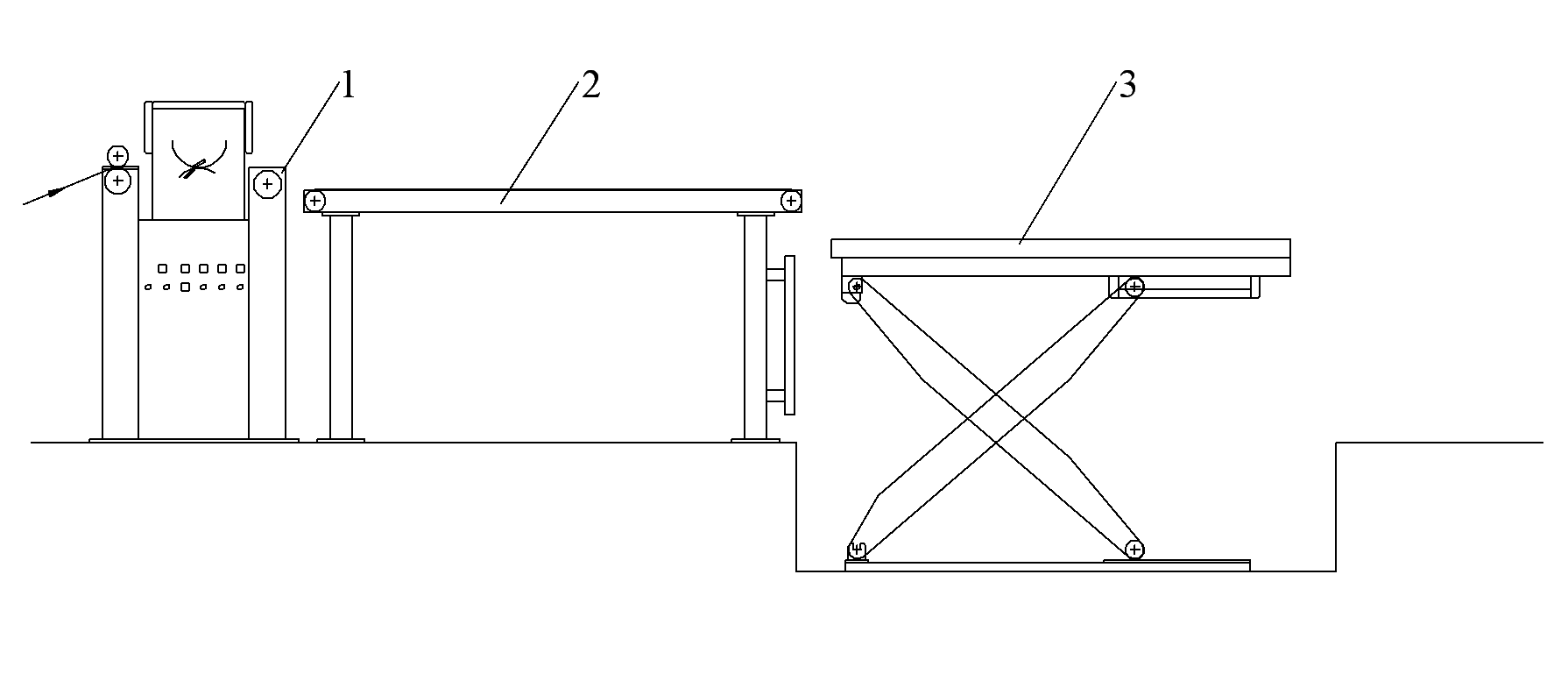

Belt Conveyor and Lift Table Stacking Solution

• 1—Shearing Unit

• 2—Belt Conveyor

• 3—Lift Table

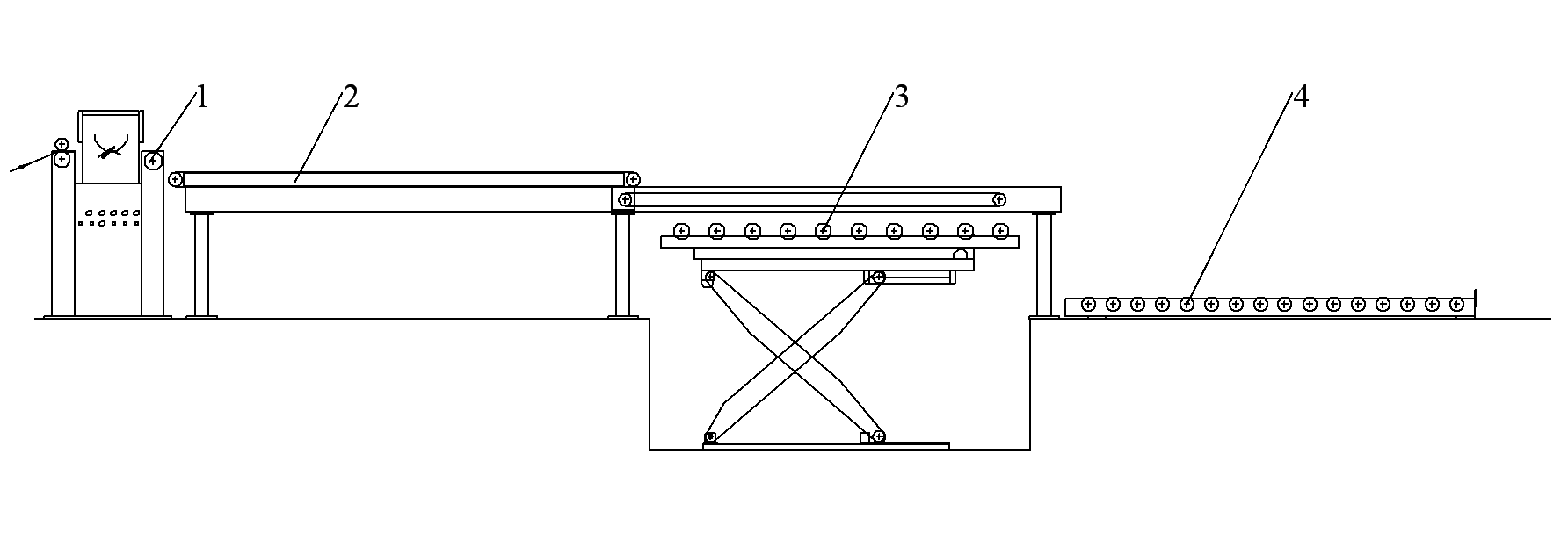

Double-Layer Belt Conveyor, Lift Table, and Roller Table Stacking Solution

• 1—Shearing Unit

• 2—Double-Layer Belt Conveyor

• 3—Lift Table with Rollers

• 4—Conveyor Roller

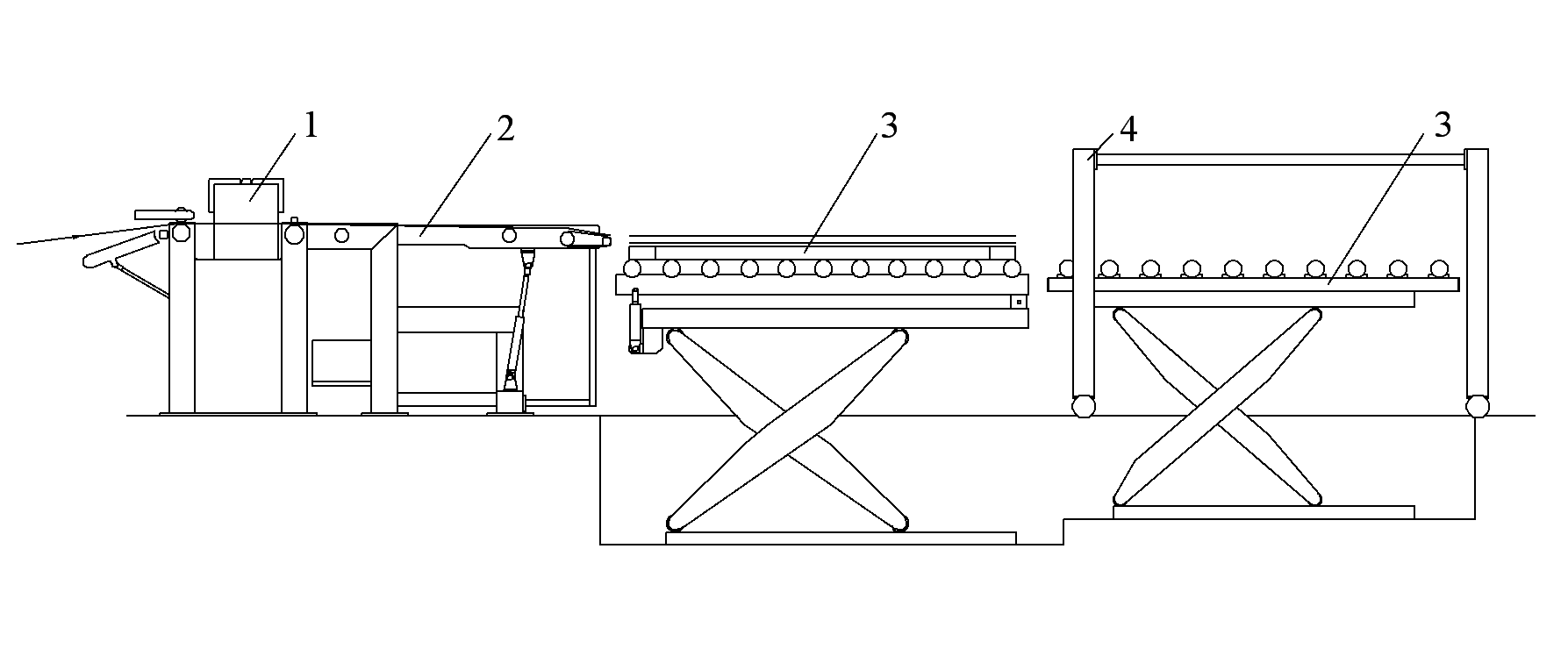

Elevating Belt Conveyor, Lift Table, and Roller Table with Automatic Stacking Change Solution

• 1—Shearing Unit

• 2—Elevating Belt Conveyor

• 3—Lift Table with Rollers

• 4—Automatic Stacker Frame

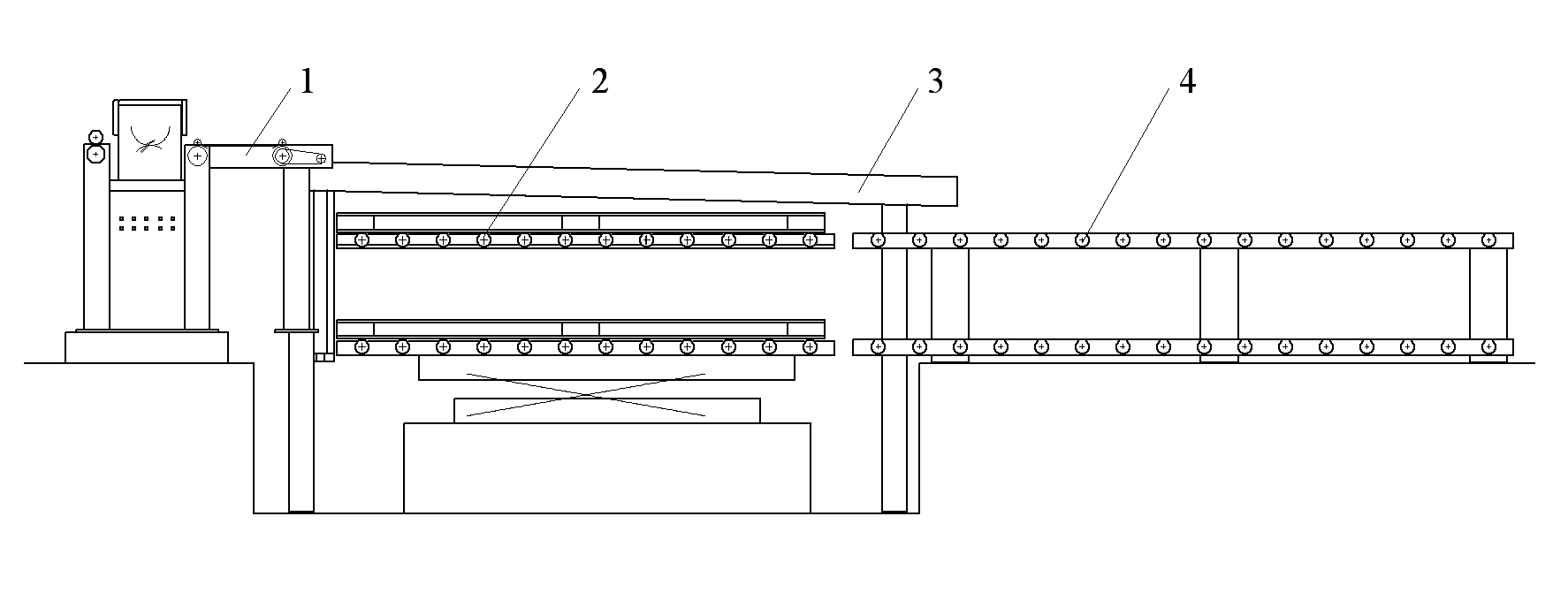

Cycling Stacker, Lift Table, and Double-Layer Roller Table Stacking Solution

• 1—Shearing Machine with Conveyor Belt

• 2—Hydraulic Lift Table

• 3—Cycling Belt Conveyor

• 4—Double-Layer Roller Table
