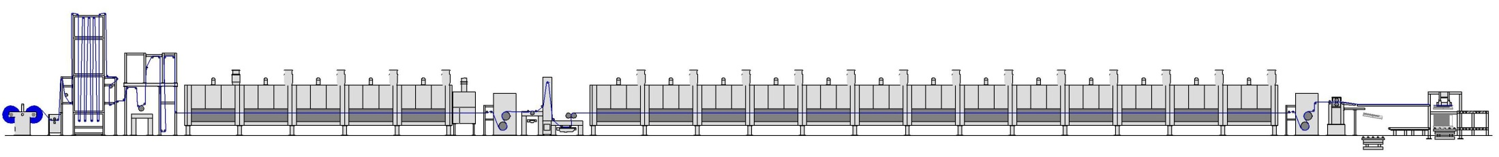

Horizontal Impregnation and Coating Line for PCB Boards

The large scale horizontal impregnating and coating line is used to make isolation film which is one kind of base material of CCL.

Parameters

Working Width:1500-2700mm

Mechanical Speed:  5~80m/min

Base Material: Wooden or cotton fiber paper

Basis Weight Raw Paper: 120~135g/©O

Annual Capacity:~50,000,000 ©O/year

key Features

Multi-points web tension control

Safety and reliable explosion-proof

Tail-gas treatment and energy recovery

Accuracy coating and resin pick-up control
